DESCRIPTION

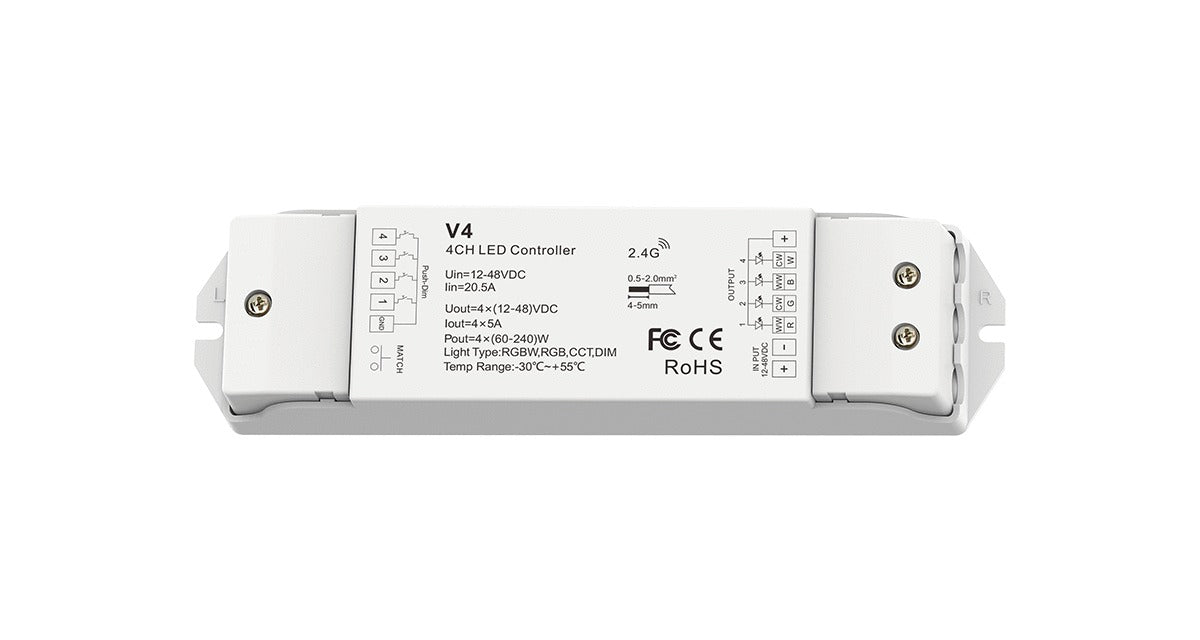

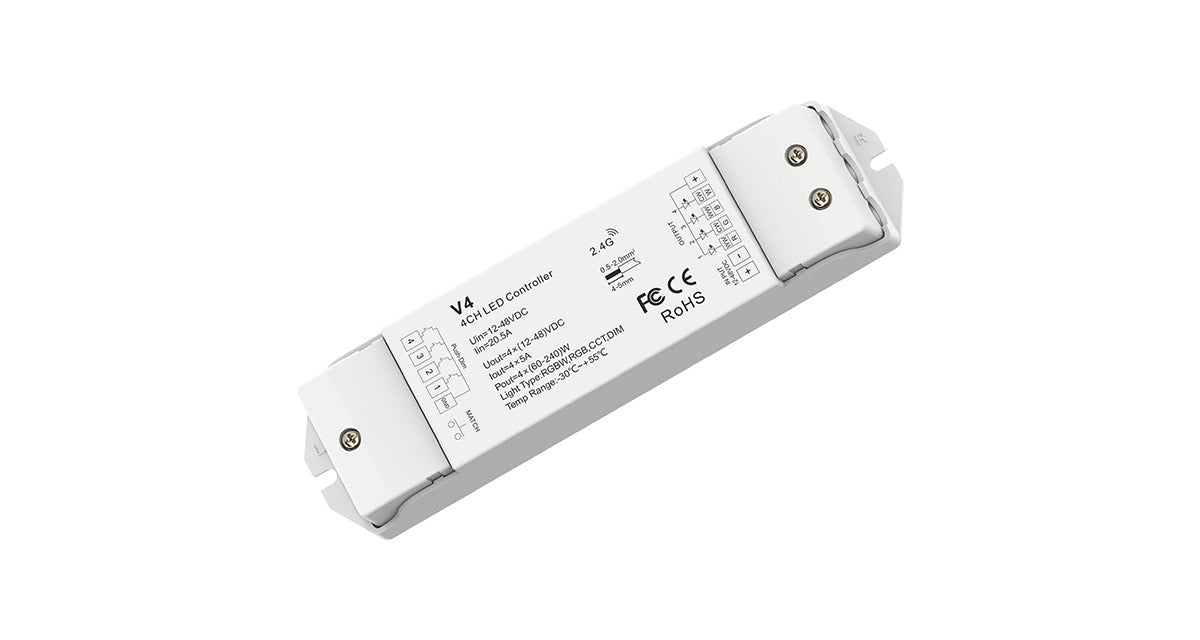

A versatile 4 channel receiver unit that is connected to any low voltage, constant voltage lighting products such as LED strip.
To connect to a chosen remote or wall panel – just press the match button on the receiver, and then one press on the chosen controller and that’s it.
* The receiver does all the dimming so a non-dimmable power supply is required. *
- Operating Voltage: 12-36VDC
- Max Output Current: 4CH, 5A/CH
- Output Power: 4 x (60-180W) (720W Total)
- Dimensions: 175 x 45 x 27mm
- Input Signal: RF 2.4GHz + Push Dim
- Dimming Range: 0-100%
- Remote Distance: 30 metres
Being so universal means, it can either be used for RGB, RGBW, Dual Colour (CCT) or a single colour controller
You can choose from a handheld remote – wall mounted touch panel switch.
