DESCRIPTION

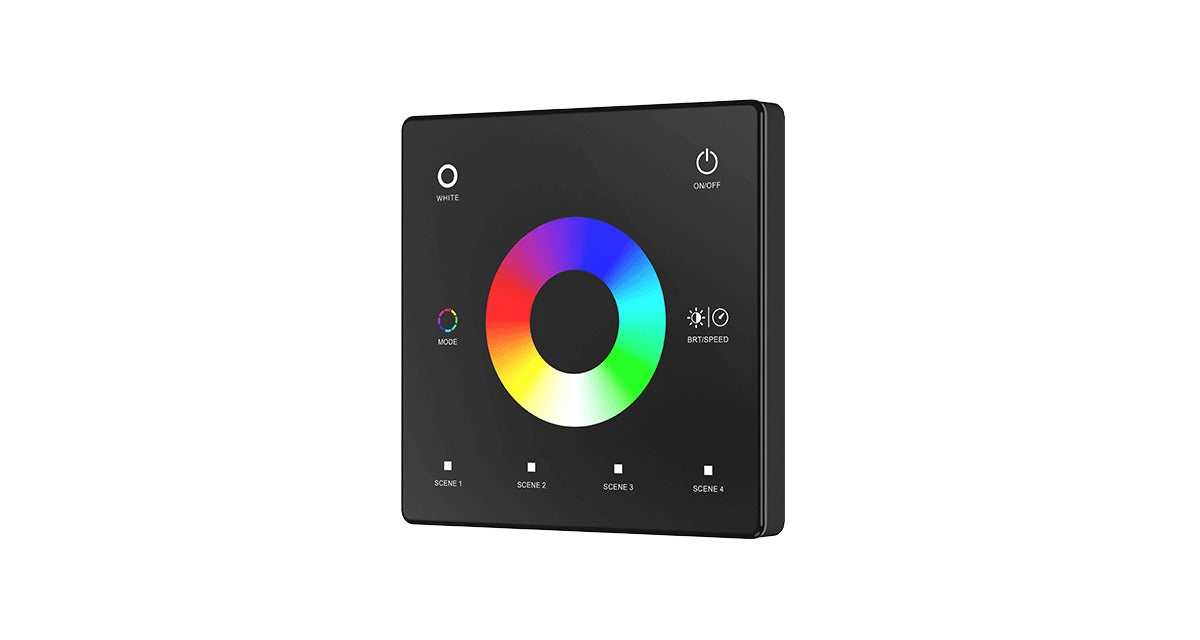

Controls up to 4 zones of RGBW strip by linking to the ELITE V4-L receiver. Within each zone it is possible to connect multiple receivers to create larger installations.
It has a White button to give separate control over the white chip.
Both RGB and W channels can be dimmed, and the last used settings are retained in memory when the unit is switched off for immediate recall next time it is used.
Please note that this unit required a live and neutral feed to operate. It will fit into a standard, deep, back box.
It is possible to use this unit with RGB strip, but the W button will have no function.
- Zone Control: 4
- Output Signal: DMX512, RF 2.4GHz
- Input Signal: Touch Key & RF 2.4GHz
- Input Voltage: 110-265VAC
- RF Control Distance: 30m
- Dimming Level: 256 Levels
- IP Rating: IP20
- Dimensions: 86 x 86mm
- Warranty: 5 Years
