ELITE LED 100-240VAC PIR Induction Dimmer & Switch (RF/0-10V) EH-R

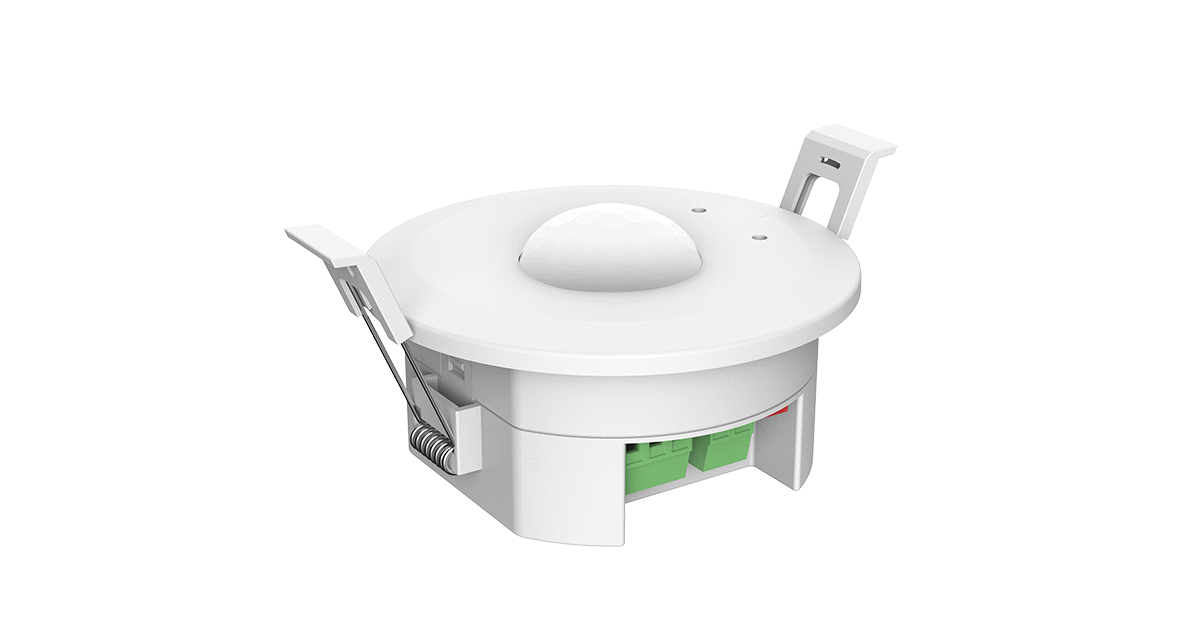

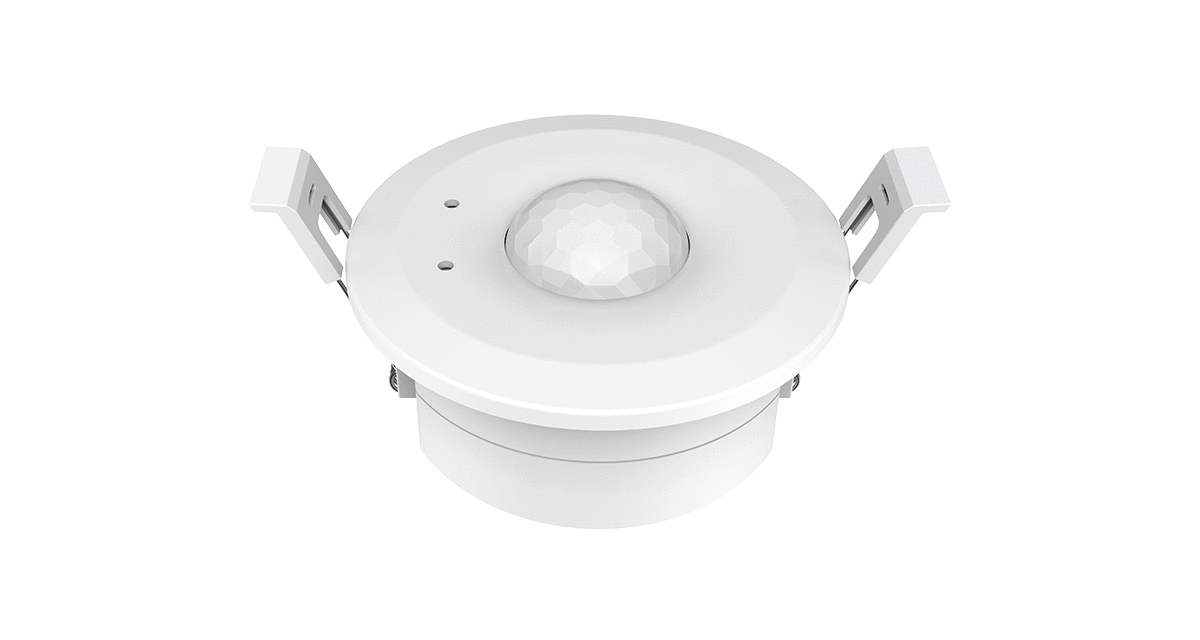

PIR Induction Dimmer & Switch – Model EH-R

Enhance your lighting control with the EH-R PIR Induction Dimmer & Switch, a versatile ceiling-mounted motion sensor designed for modern lighting systems. Combining advanced PIR motion detection, daylight sensing, and intelligent dimming, it delivers energy-efficient, hands-free lighting for homes, offices, and commercial spaces.

Key Features

🔶 Dual Function: Dimmer + Switch

• Operates as either a 0/1–10V dimmer or a high-voltage AC switch

• Compatible with both dimmable and non-dimmable LED drivers

🔶 PIR Motion Detection

• Automatically turns lights on when motion is detected

• Adjustable hold time from 10 seconds to 30 Minutes

• Wide 120° detection angle and up to 10m detection range

🔶 Built-In Daylight Sensor

• Prevents lights from turning on when ambient light is sufficient

• Selectable lux levels: 10 / 30 / 50 / 100 / 150 / 200 / Disable

🔶 Two-Step Dimming Option

• Switch from full brightness to 20% standby mode

• Customizable standby time from 0 seconds to +∞

🔶 RF 2.4GHz Wireless Control

• Works as an RF remote

• Can pair with RF LED controllers or RF dimmable LED drivers

• Supports one-to-many or many-to-one control setups

🔶 Flexible Installation

• Ceiling installation (Ø 86mm cut-out)

• Maximum mounting height: 5 meters

• Ideal for hallways, offices, corridors, restrooms, staircases, and more

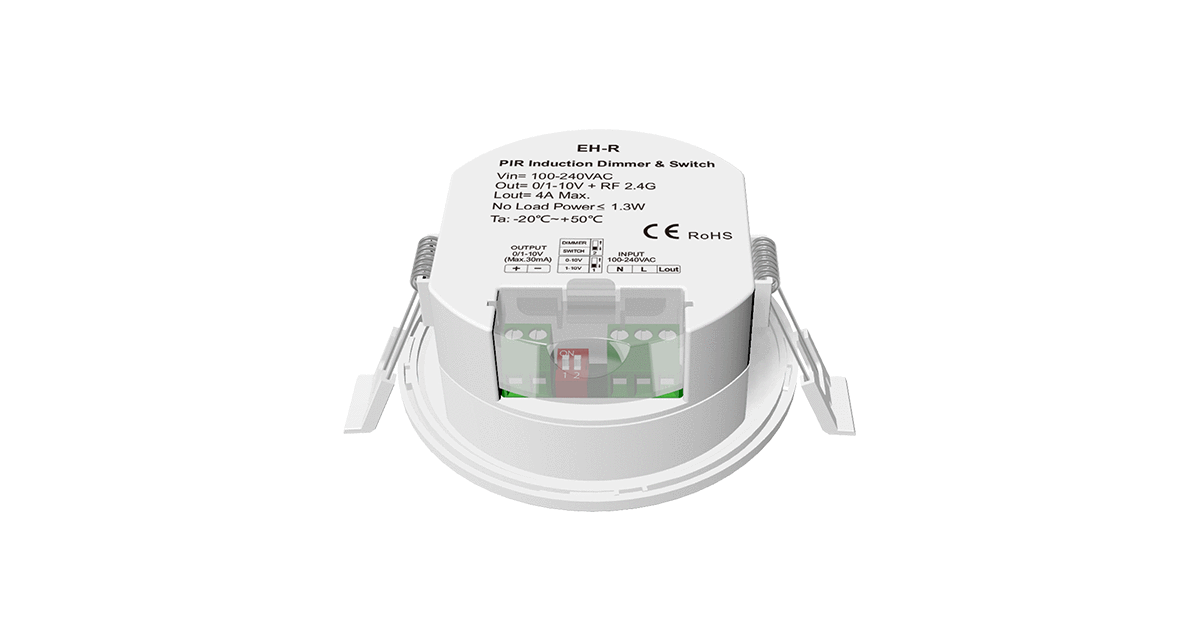

Technical Specifications

• Input Voltage: 100–240VAC

• Output Signal: 0/1–10V, RF 2.4GHz (Max 30mA)

• Relay Output: Max 4A (AC)

• Power Consumption: <1.3W

• IP Rating: IP20 (indoor use)

• Operating Temp: –20°C to +50°C

• Warranty: 5 Years
